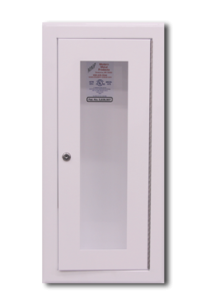

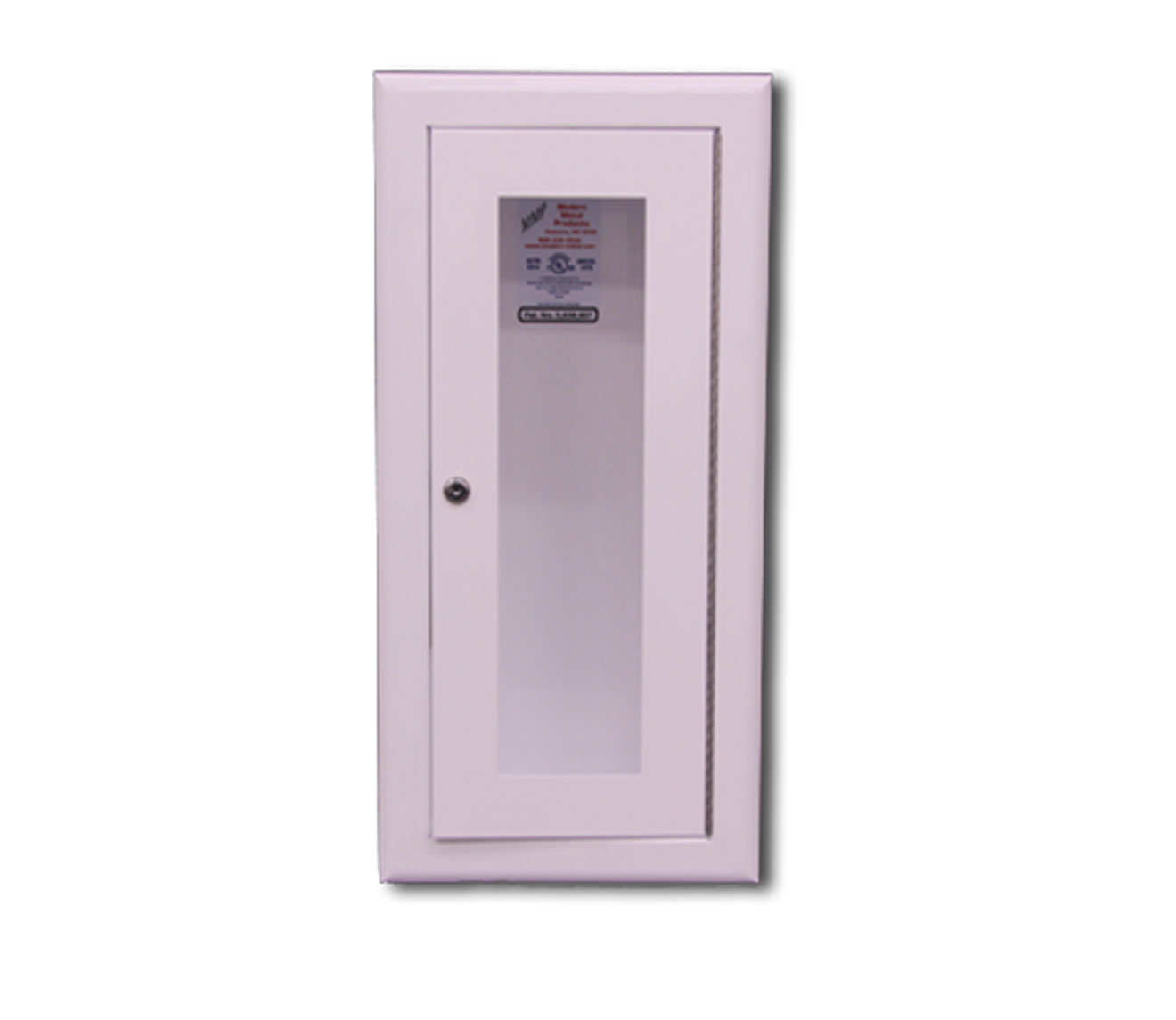

Fire Rated Cabinets
UL-Classified Fire Protection for Rated Walls
Designed for installation in fire-rated walls, these cabinets meet strict safety requirements without compromising performance or appearance. When properly installed with Type X sheetrock per MMP instructions, they maintain the integrity of 1- and 2-hour fire-rated assemblies.
Specifications:
- Fire-rated per UL 1479 (UL Classification WL7005)

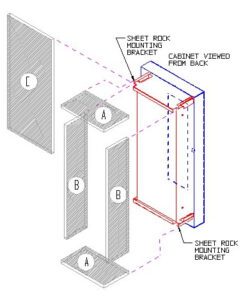

- MMP fire safety bracket accommodates Type X sheetrock
- Patent-pending design for efficient field installation
- Minimal lead time with available stock cabinets
Important: Fire rating is void unless installed per MMP instructions. Refer to the UL Fire Resistance Directory (1996 edition) for compliance.
We build our products as though people’s lives depended upon them. And they do.
| STOCK MODELS | DOOR STYLE | INSIDE TANK DIMENSIONS | TRIM DIMENSIONS (OD) | ROUGH OPENING IN WALL | ||||||
| Height | Width | Depth | Height | Width | Depth | Height | Width | Depth | ||
| FSB1026SR3FBGDA00 | BREAK GLASS | 24″ | 9-1/2″ | 6″ | 27-1/2″ | 13″ | 2-1/2″ | 25-3/4″ | 11-1/4″ | 4-3/4″ |
| FSB1026SR3FFGDA00 | FULL GLASS | 24″ | 9-1/2″ | 6″ | 27-1/2″ | 13″ | 2-1/2″ | 25-3/4″ | 11-1/4″ | 4-3/4″ |
